Car Command Board

The car command board offers superior anti-electromagnetic interference and anti static performances as well as overcurrent protection function. It must be used in combination with our SM-02 car control board. The required quantity of car control board varies with the maximum floor number that the elevator will go to. Every increase of 8-floor, one more car control board is required.

Functions
1. This car command board shall be used together with car control board of SM-02 series.

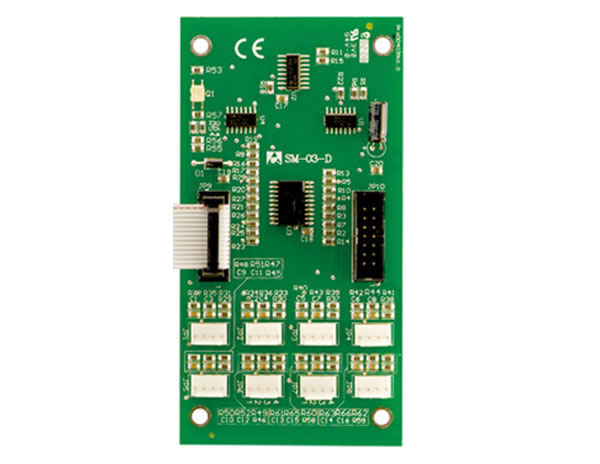

2. One piece of SM-03-D series is suitable for the building with maximum 8 floors.

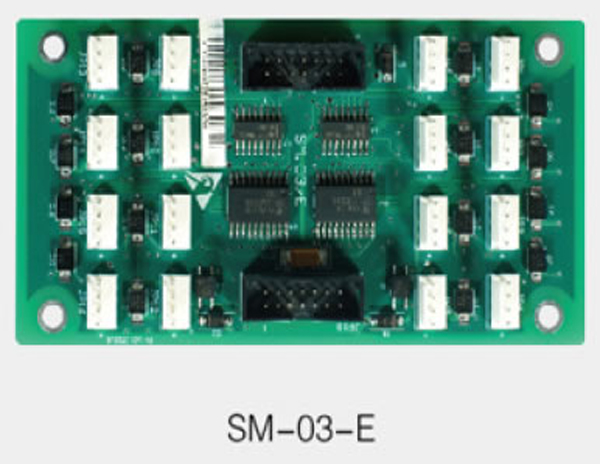

3. One piece of SM-03-E series is applicable for the building with maximum 16 floors.

STEP is a China-based car command board manufacturer and supplier. Our company also provides integrated full serial VVVF control cabinet, serial calling board, elevator integrated drive and controller, elevator inverter, and much more.

Other products
    1. Dot-matrix LCD Elevator Calling / Indicator Board
    2. Dot-matrix LCD Elevator Calling / Indicator Board

      1. Our dot-matrix LCD elevator calling & indicator board adopts a 16-bit high performance industrial grade CPU. 2. It is equipped with a 320×240 dot matrix display which is able to display rich contents clearly and softly. The display area is in the size of 115mm×86mm and users can define the welcome messages displayed on the board freely. 3. Three kinds of display color patterns are available to this elevator indicator panel. They are respectively white words in blue background, white words in black background and yellow words in black background.

    1. TFT LCD Elevator Indicator Board
    2. TFT LCD Elevator Indicator Board

      3.5 Inch TFT LCD Elevator Indicator Board Product Characteristic Display Zone: 72mm×54mm Resolution: 320×240 Display Type: Horizontal Communication Type: CAN Bus serial communication Rated Voltage: 24V/DC Picture Updating Method: This indicating board will be connected to a PC through a USB port cable to update pictures.
