Indicator Board, Calling Board

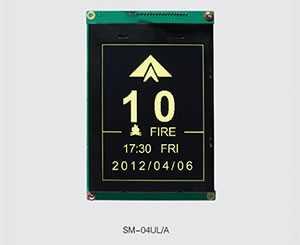

    2. Dot-matrix LCD Elevator Calling / Indicator Board 1. Our dot-matrix LCD elevator calling & indicator board adopts a 16-bit high performance industrial grade CPU. 2. It is equipped with a 320×240 dot matrix display which is able to display rich contents clearly and softly. The display area is in the size of 115mm×86mm and users can define the welcome messages displayed on the board freely. 3. Three kinds of display color patterns are available to this elevator indicator panel. They are respectively white words in blue background, white words in black background and yellow words in black background.
      Inquiry Form

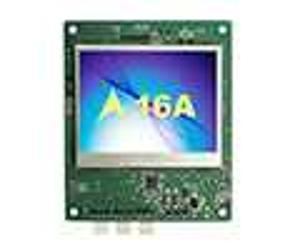

    2. TFT LCD Elevator Indicator Board 3.5 Inch TFT LCD Elevator Indicator Board Product Characteristic Display Zone: 72mm×54mm Resolution: 320×240 Display Type: Horizontal Communication Type: CAN Bus serial communication Rated Voltage: 24V/DC Picture Updating Method: This indicating board will be connected to a PC through a USB port cable to update pictures.
      Inquiry Form

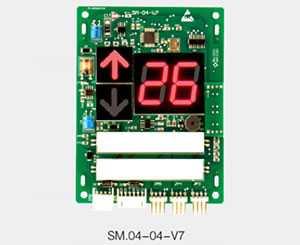

    2. Serial LED Elevator Calling / Indicator Board 1. Our serial LED elevator calling & indicator board is equipped with a16-bit high performance industrial CPU. 2. CAN Bus serial communication method helps save cables and make wiring work easier. 3. Our serial indicator board adopts 7-segment or 16-segment LED display and the display color can be red, orange or blue.
      Inquiry Form

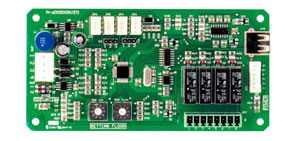

    2. Serial Calling Board The serial calling board can generate and receive call signals controlled by a 16 bit high performance industrial CPU. After the elevator stops, the serial calling board will drive the indicator lamp and the chime. For an elevator equipped with our serial calling board, passengers can set the floor number by a rotary switch. Our serial calling board uses the cable saving and easy wiring CAN-Bus serial communication and has four relay outputs and elevator locking function.
      Inquiry Form

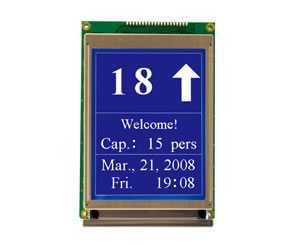

    2. Serial LCD Elevator Calling / Indicator Board 1.Using a 16-bit high performance industrial grade CPU, our serial LCD elevator calling & indicator board is able to display rich contents clearly and softly. 2. Employing the CAN Bus serial communication method, our serial elevator indicator plate saves cables and enjoys easy wiring work. 3. Size of the display area for the SM-04-VL B3 model calling board is 124 mm×65 mm, while display area size for the SM.04VL16/A model one is 115 mm×49 mm. 4. Contents will be displayed in white under blue background on the indicating board.
      Inquiry Form

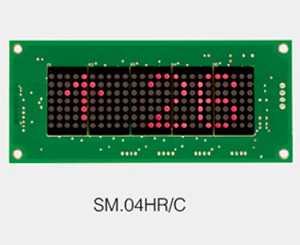

    2. Serial Dot-matrix LED Elevator Calling / Indicator Board 1. 16-bit high performance industrial grade CPU is configured to our serial dot-matrix LED elevator calling & indicator board. 2. This product supports square dot matrix or round dot matrix display in the color of red, orange or blue. 3. Applying the CAN Bus serial communication method, our dot-matrix elevator indicating plate uses less cables and enjoys easy wiring design.
      Inquiry Form
    2. Serial Super Large Screen Dot Matrix Indicator Board Our serial super large screen dot matrix indicator board is controlled by a 16 bit high performance industrial CPU. For an economic and convenient wiring connection design, our serial dot matrix indicator board applies the CAN-Bus serial communication standard. The extra large screen with round LED dot matrix can display the information such as the current floor and elevator running direction, as well as a Chinese/English welcome message which can be set or modified by the customer easily. Three available display colors, red, orange and blue, can be chosen according to one's preference.
      Inquiry Form
    2. Serial High Resolution LCD Indicator Board With a 16 bit high performance industrial CPU and a CAN-Bus communication standard wiring design, the serial high resolution LCD indicator board achieves multiple functions including elevator call and elevator locking. After receiving the call signal, the serial high resolution LCD indicator board will light the button of the corresponding floor.
      Inquiry Form

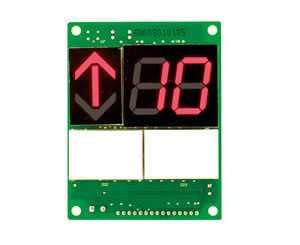

    2. Parallel Indicator Board 1. The parallel indicator board is installed with high performance industrial CPU. 2. The elevator controller supports parallel communication. 3. Display method of the elevator indicator board: Dot matrix or 7-segment LED 4. Display color: red, orange, or blue
      Inquiry Form

Our company provides a variety of indicator board which mainly classified into serial indicator board and parallel indicator board. The available colors of the serial indicator boards are red, orange, blue, etc. The indicator board has a scrolling display function, which will show the current floor and direction, as well as the elevator status such as overload, full load, inspection mode, etc.

STEP is a specialized indicator board, calling board manufacturer in China. We also provide elevator main controller board, elevator group control system, elevator inverter, full serial VVVF control cabinet, and more.
