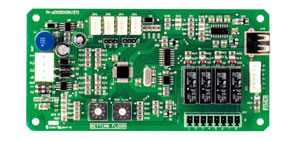

Serial Calling Board

The serial calling board can generate and receive call signals controlled by a 16 bit high performance industrial CPU. After the elevator stops, the serial calling board will drive the indicator lamp and the chime. For an elevator equipped with our serial calling board, passengers can set the floor number by a rotary switch. Our serial calling board uses the cable saving and easy wiring CAN-Bus serial communication and has four relay outputs and elevator locking function.

Related products
Other products
    1. Serial LCD Elevator Calling / Indicator Board
    2. Serial LCD Elevator Calling / Indicator Board

      1.Using a 16-bit high performance industrial grade CPU, our serial LCD elevator calling & indicator board is able to display rich contents clearly and softly. 2. Employing the CAN Bus serial communication method, our serial elevator indicator plate saves cables and enjoys easy wiring work. 3. Size of the display area for the SM-04-VL B3 model calling board is 124 mm×65 mm, while display area size for the SM.04VL16/A model one is 115 mm×49 mm. 4. Contents will be displayed in white under blue background on the indicating board.

    1. Serial Dot-matrix LED Elevator Calling / Indicator Board
    2. Serial Dot-matrix LED Elevator Calling / Indicator Board

      1. 16-bit high performance industrial grade CPU is configured to our serial dot-matrix LED elevator calling & indicator board. 2. This product supports square dot matrix or round dot matrix display in the color of red, orange or blue. 3. Applying the CAN Bus serial communication method, our dot-matrix elevator indicating plate uses less cables and enjoys easy wiring design.
