AC Servo Motor ,OM1/OM2 Series

AC Servo Motor ,OM1/OM2 Series
Inquiry Form

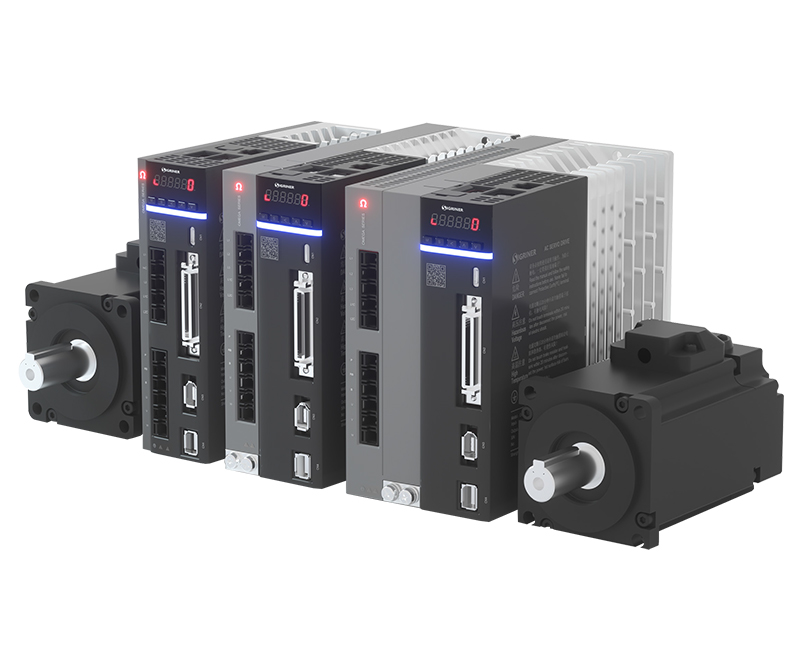

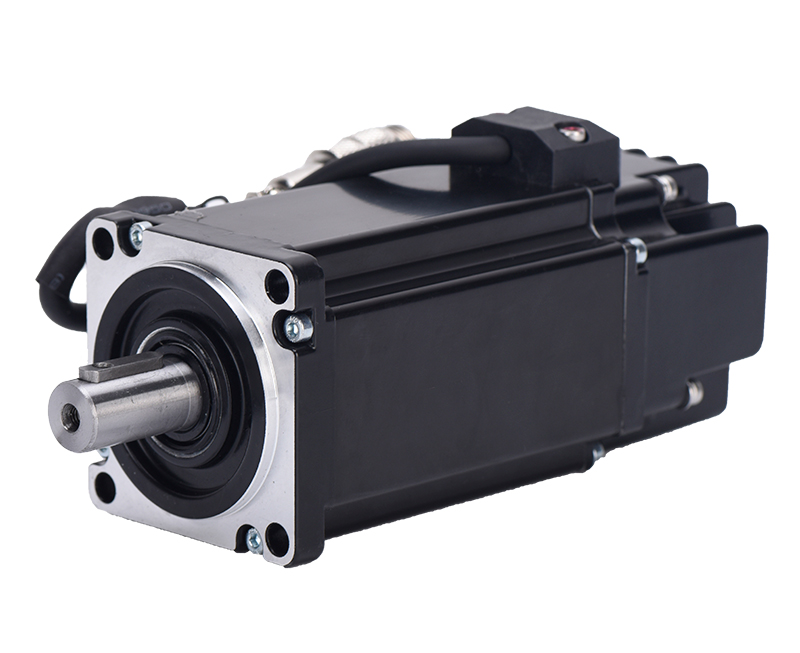

The AC servo motor features high transmission efficiency, and optimized electromagnetic structure, enabling it to feature fast dynamic response and high positioning precision. It can perfectly match with Ω6 series servo drive to meet various motion control requirements.


OM1 Servo Motor and Drive Model - Configuration Sheet
Power supply Motor type Rated speed Model No. Flange size Rated power Drive model
Single-phase 220V OMS1 low inertia 3000r/min OMS1201 60mm 200W ODSA □ 6A201 □ B
OMS1401 60 mm 400W ODSA □ 6A401 □ B
Single/three-phase 220V OMS1 low inertia 3000r/min OMS1751 80 mm 750W ODSA □ 6A751 □ B
OMS1951 80 mm 1.0kW ODSA □ 6A102 □ B
OMS1102 100 mm 1.0kW ODSA □ 6A102 □ B
OMS1152 100 mm 1.5kW ODSA □ 6A152 □ B
OMS1202 100 mm 2.0kW ODSA □ 6A202 □ B
Single-phase 220V OMM1 medium inertia 3000r/min OMM1500 40 mm 50W ODSA □ 6A201 □ B
OMM1101 40 mm 100W ODSA □ 6A201 □ B
Single/three-phase 220V OMM1 medium inertia 2000r/min OMM1102 130 mm 1.0kW ODSA □ 6A102 □ B
OMM1152 130 mm 1.5kW ODSA □ 6A152 □ B
OMM1202 130 mm 2.0kW ODSA □ 6A202 □ B
Single-phase 220V OMD1 medium inertia 3000r/min OMD1500 40 mm 50W ODSA □ 6A201 □ B
OMD1101 40 mm 100W ODSA □ 6A201 □ B
OMD1201 60 mm 200W ODSA □ 6A201 □ B
OMD1401 60 mm 400W ODSA □ 6A401 □ B
Single/three-phase 220V OMG1 high inertia 1500r/min OMG1851 130 mm 850W ODSA □ 6A102 □ B
OMG1132 130 mm 1.3W ODSA □ 6A152 □ B
Single-phase 220V OMH1 high inertia 3000r/min OMH1201 60 mm 200W ODSA □ 6A201 □ B
OMH1401 60 mm 400W ODSA □ 6A401 □ B
Single-phase 220V OMH1 high inertia 3000r/min OMH1751 80 mm 750W ODSA □ 6A751 □ B
Single/three-phase 220V OMH1 high inertia 2000r/min OMH1102 130 mm 1.0kW ODSA □ 6A102 □ B
OMH1152 130 mm 1.5kW ODSA □ 6A152 □ B
OM2 Servo Motor and Drive Model - Configuration Sheet
Power supply Motor type Rated speed Model No. Flange size Rated power Drive model
Single-phase 220V OMS2 low inertia 3000r/min OMS2101 40 mm 100W ODSA □ 6A201 □ B
OMS2201 60 mm 200W ODSA □ 6A201 □ B
OMS2401 60 mm 400W ODSA □ 6A401 □ B
Single/three-phase 220V OMS2 low inertia 3000r/min OMS2751 80 mm 750W ODSA □ 6A751 □ B
OMS2951 80 mm 1.0kW ODSA □ 6A102 □ B
Single/three-phase 220V OMM2 medium inertia 2000r/min OMM2102 130 mm 1.0kW ODSA □ 6A102 □ B
OMM2152 130 mm 1.5kW ODSA □ 6A152 □ B
OMM2202 130 mm 2.0kW ODSA □ 6A202 □ B
OMM2302 130 mm 3.0kW ODSA □ 6A302 □ B
Single/three-phase 220V OMG2 high inertia 1500r/min OMG2851 130 mm 850W ODSA □ 6A102 □ B
OMG2132 130 mm 1.3kW ODSA □ 6A152 □ B
OMG2182 130 mm 1.8kW ODSA □ 6A202 □ B
Single-phase 220V OMH2 high inertia 3000r/min OMH2201 60 mm 200W ODSA □ 6A201 □ B
OMH2401 60 mm 400W ODSA □ 6A401 □ B
Single/three-phase 220V OMH2 high inertia 3000r/min OMH2751 80 mm 750W ODSA □ 6A751 □ B
OMH2951 80 mm 1.0kW ODSA □ 6A102 □ B
Single/three-phase 220V OMH2 high inertia 2000r/min OMH2102 130 mm 1.0kW ODSA □ 6A102 □ B
OMH2152 130 mm 1.5kW ODSA □ 6A152 □ B
OMH2202 130 mm 2.0kW ODSA □ 6A202 □ B
OMH2302 130 mm 3.0kW ODSA □ 6A302 □ B
